Integrated pump Powder Coated Heavy Duty Hand Pallet Truck

FOB Reference Price:Get Latest Price
$150.00 - $300.00 / Pieces | 3 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China
Brand Name:
Aceally
Model Number:
ACL-hand pallet truck
Lift Drive / Actuation:
Hand
Product name:
hand pallet jack
load capacity:
2500kg-5000kg hand pallet truck
lift height H:
190mm-200mm hand pallet truck
low fork height H:
85mm hand pallet truck
high fork height L:
115mm hand pallet truck
fork length L:
550mm*1100mm,685mm*1220mm
Material:
round solid steel
Handle:
peach/plastic handle
Wheels:
PU/NYLON wheel
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard Exporting Packaging for hand pallet truck
Port
xiamen

Integrated pump Powder Coated Heavy Duty Hand Pallet Truck

Product Description

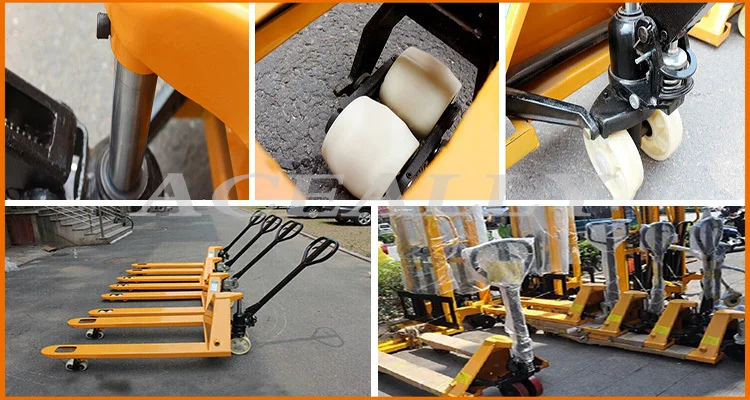

China hand pallet truck scale with weigh scale structure details showing:

hand pallet truck features:

  • Safety is enhanced by the special high visibility 2 tone safety color scheme in durable powder coat paint.
  • The reinforced, fully welded steel chassis is durable yet light.
  • The high efficiency cast-pump jack has a one year manufacturer's limited warranty.
  • Heavy duty iron steer wheels deliver superior durability.
  • Heavy duty cast iron tow bars withstand high pulling stresses.
  • Multiple grease fittings at pivoting and wear points make maintenance easy and deliver long component life.
  • The high strength cushioned steel loop handle has a cast iron control lever with lift, neutral, and lowering positions.
  • The neutral position eliminates premature wear on the hydraulic components in the jack.
  • The handle automatically returns to vertical upon release.
  • Fork tip entry wheels give smooth, easy pallet entry when handling fragile loads and are protected by built-in skid plates for greater durability and longer life.
  • Manual Hydraulic pallet truck with AC pump. Easy roll pivot wheel tires, urethane load rollers, and guide wheels are durable and easily replaceable.
  • Square section connecting rods have better bending resistance for increased durability in demanding applications.

Reasonable design of frame & longer service life



hand pallet truck specification:

  Specification model
  Load capacity kg 2000-5000
  Lift height (H) mm 115
  Low fork height (H) mm 75
  High fork height (L) mm  190
  Fork length (L) mm 450x900
  Bracket lnner width (D) mm  130
  Bracket single fork mm 160
  Front wheel diameter mm 70x60
  Rear wheek diameter mm 180x50

 If require other specification and information of pallet jack, pls contact us directly, thanks!



Also with reliable oil leak prevention hydraulic system



Company Information

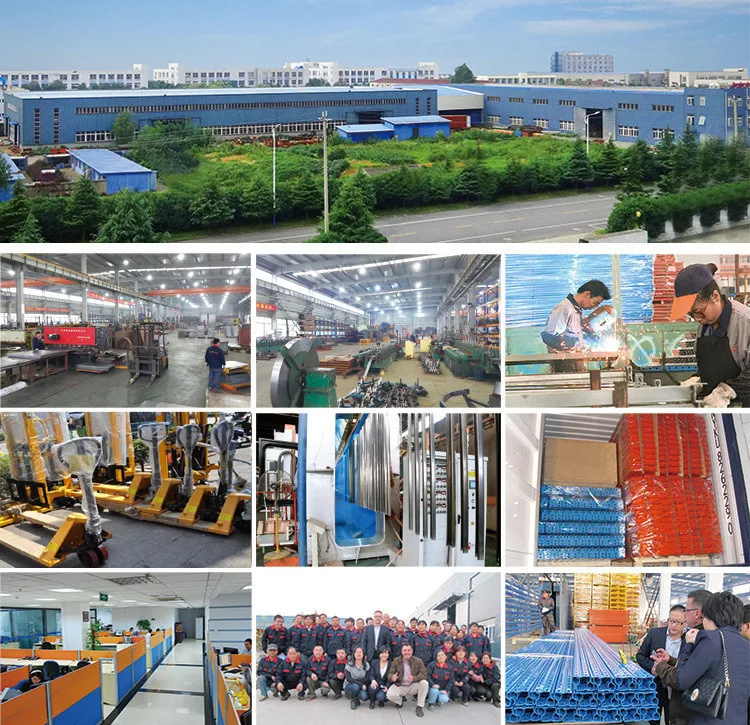

  Aceally (International) Group is a manufacturer of innovative and professional logistics equipment products for warehousing storage markets worldwide. Which specializes in light duty shelving, medium duty racking, heavy duty ones and various storage and shelving solutions for nearly 15 years. Please feel free to contact our highly knowledgeable staff and allow us the pleasure of proposing the most innovative and affordable solution to your material handling needs.



FAQ



1. What’s your payment term ?

   Aceally accept 30% T/T prepaid, the balance 70% paid upon copy of BL , or LC at sight



2. What’s the warrenty of Aceally products?

  Aceally’s high standards in the design and manufacturing of the systems enable Aceally to support its products within a 10 years warranty



3. About Delivery

  Within 30-35days for 1-5 containers



4. What’s Aceally advantage

   Aceally has been in racking field for more than 20years , we are the Material handling experts you can trust. We supply free design , have made thousands of cost-effective solutions for clients all over the world.



5. Can you supply price list and Loading chart ?

   Yes, you can download loading chart from “DOWNLOAD”, and contact our sales for price list as well.



6. Can you supply sample ?

   Free samples are supplied upon requirement , but the delivery cost should be collected .



7. Do you have any certification ?

  Yes, we have AS4084-2012 , CE .
